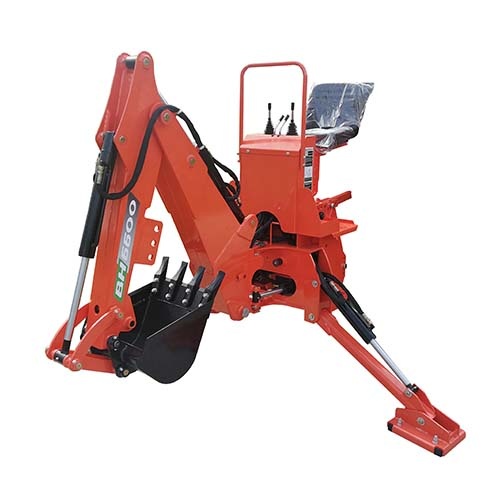

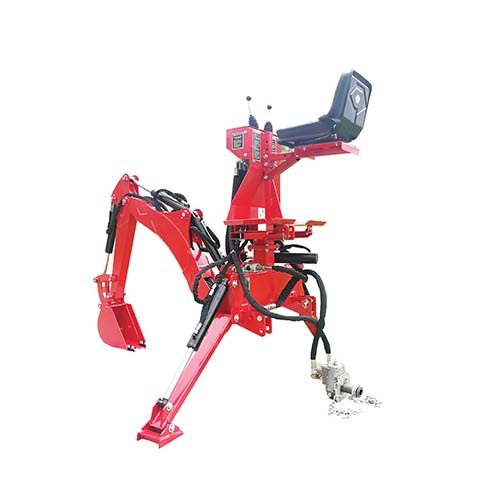

Backhoe BH

OVERVIEW

The BH Series tractor backhoe can be used for various tasks across multiple industries.

Speeds up excavation and material handling processes.

Reduces the need for multiple machines on a job site.

Compatible with most tractors, making it a convenient and flexible tool.

Model	BH5600	BH6600	BH7600	BH8600
Maximum Digging Depth	1830mm	2133mm	2438mm	2745mm
Digging Depth (two-foot flat bottom)	1676mm	1980mm	2286mm	2590mm
Swing Arc	180 °	180 °	180 °	180
Loading Height (bucket at 60 ° )	1270mm	1524mm	1778mm	2032mm
Reach from the Center Line of Swing Pivot	2286mm	2590mm	2895mm	3200mm
Transport Height (maximum)	1245mm	1498mm	1752mm	2032mm
Bucket Rotation	180	180 °	180 °	180
Loading Reach (bucket at 60 ° )	865mm	965mm	1092mm	1220mm
Transport Overhang	1016mm	1042mm	1066mm	1092mm
Undercut	660mm	712mm	762mm	812mm
Stabilizer Spread, down position	1700mm	1980mm	2260mm	2565mm
Stabilizer Spread, up position	1066mm	1194mm	1550mm	1828mm
Bucket Cylinder Digging Force	930kgs	1112kgs	1288kgs	1360kgs
Dipper stick Cylinder Digging Force	476kgs	566kgs	910kgs	1135kgs
Shipping Weight (less bucket)	252kgs	462kgs	481kgs	500kgs
Hydraulic Volume 3'4" Requirements	3 to 4 GPM	3 to 4 GPM	4 to 5 GPM	5 to 6 GPM
Hydraulic Pressure Requirements	2000 psi	2000 psi	2000 psi	2000 psi
Recommended Tractor HP	18-25HP	20 - 35 HP	25 - 45 HP	35 - 65 HP
