Products >> Tractor Implements >> Flail Mower

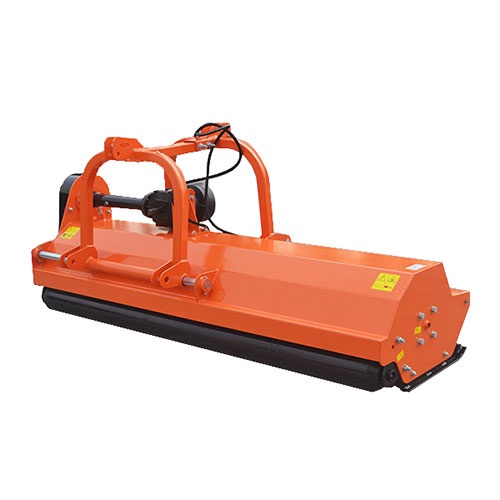

BCS Front And Rear Flail Mower
- Product No.：20243181589
BCS SeriesFront And Rear Flail Mower has been designed for tractors 40-80hp.
Heat forged hammers for grass, thicker vegetation and small twigs.
Cutting height can be easily changed via an adjustable roller.
It can be used for tractor front 3 point linkage and rear 3 point linkage.
BENEFITS & FEATURES
Sprial Rotor electronically balanced.
Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty)
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
Adjustable roller unit.
|
Specifications |
FLAIL MOWER |
||||
|
HEAVY DUTY |
|||||
|
Model |
BCS140 |
BCS160 |
BCS180 |
BCS200 |
BCS220 |
|
Tractor Engine HP Range |
30-50hp |
40-60hp |
50-70hp |
60-80hp |
70-90hp |
|
Hitch |
Cat I/ll |
||||
|
Cutting Width(mm) |
1400 |
1600 |
1800 |
2000 |
2200 |
|
Weight(kg) |
320 |
355 |
390 |
425 |
460 |
|
No.of Belts |
3 |
3 |
4 |
4 |
4 |
|
Side Movement Distance(mm) |
500mm |
||||
|
Cutting Height Range(mm) |
10-50mm |
||||
|
Gearbox HP Rating |
50hp |
||||
|
Tractor PTO Speed |
540rpm |
||||
|
Belt |
B-section |
||||
|
Hydraulic side shift |
Yes |
||||
